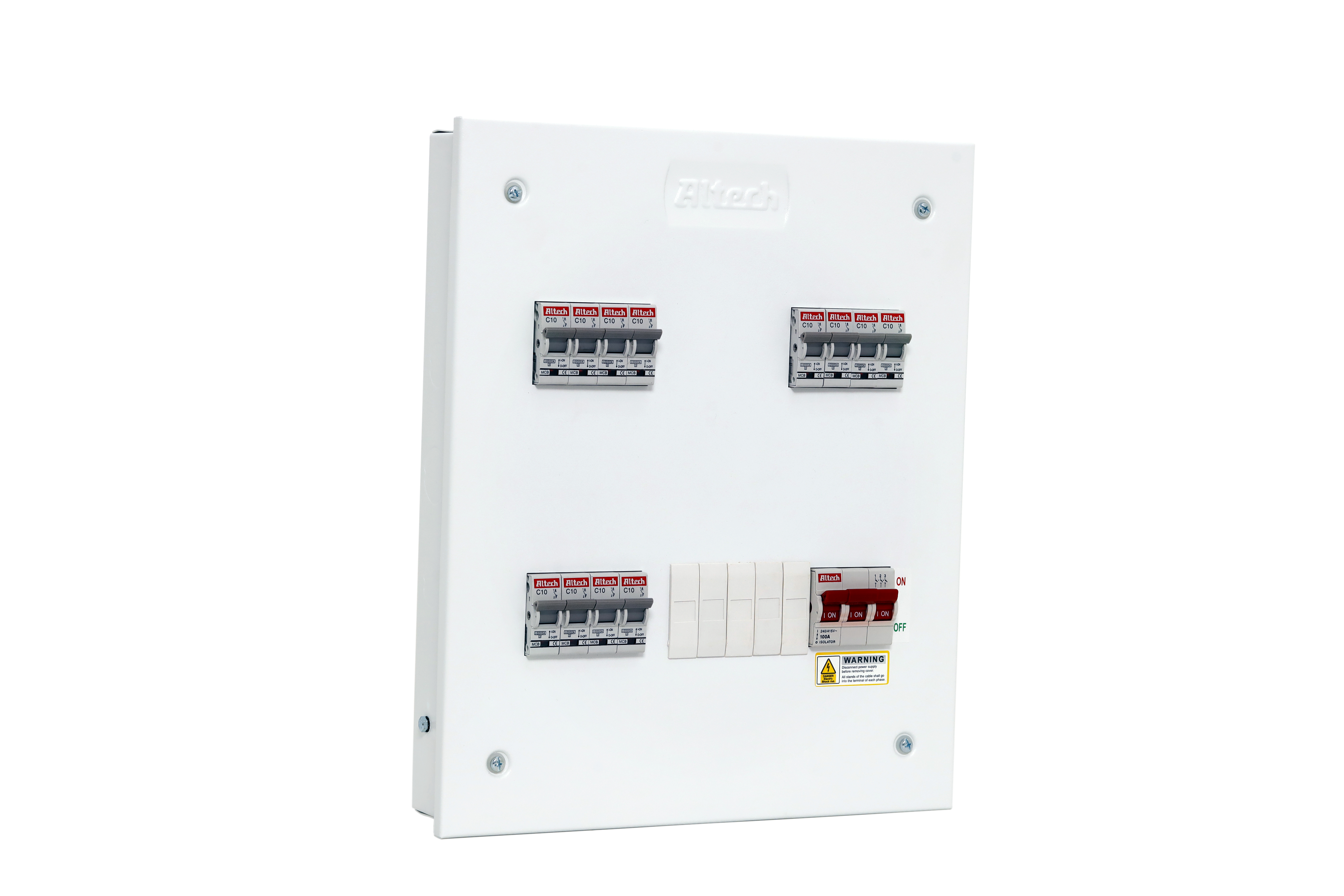

TPN H SINGLE DOOR
- Altech mission is to improve the quality of life and the environment through power supply management technologies and services.
- Our company’s vision is to provide competitive products and services in the home automation, industrial automation and energy management fields.
- These are also busbars with protective grounding wires and neutral wires in the interior to facilitate wiring of various low-voltage power distribution system.
- Distribution boxes are widely used in various building , plazas , station , industrial and mining enterprise etc as terminal electrical equipment for power distribution system’s
- These boards undergo a seven-tank phosphating pre-treatment process to ensure anti-rust conditioning, superior finish and lasting strength. Post this process, premium quality powder coating is applied using the state-of-the-art techniques. These boards are also equipped with top and bottom removable gland plates with a number of knockouts. One can thus install them either flush or wall mounted
| No. of Ways | 4, 6, 8 & 12 ways |
| Type of Installation | Surface and Flush mounting |
| Colour | RAL 7035 |
| Distribution Technique | Insulated Busbar |
| Bus Bar Rating | 100A |
| Voltage Rating | 240/415V~ AC, 3 Phase / 4 Wire |
| Incoming Options | Three phase MCB / RCCB / Isolator |
| Outgoing Options | Single pole MCB up to 63A |
| Ingress Protection (IP) | IP42 |
| Ambient Temperature | -5? C to 40? C |
| Rated Insulated Voltage (Ui) | 690V~ |
| Frequency | 50Hz |
| Standards | IS 8623; IS 13032,IEC 61439 |
| Material | Cold-rolled steel plate box |
