GOLD LINE VTPN DD
- Altech mission is to improve the quality of life and the environment through power supply management technologies and services.
- Our company’s vision is to provide competitive products and services in the home automation, industrial automation and energy management fields.

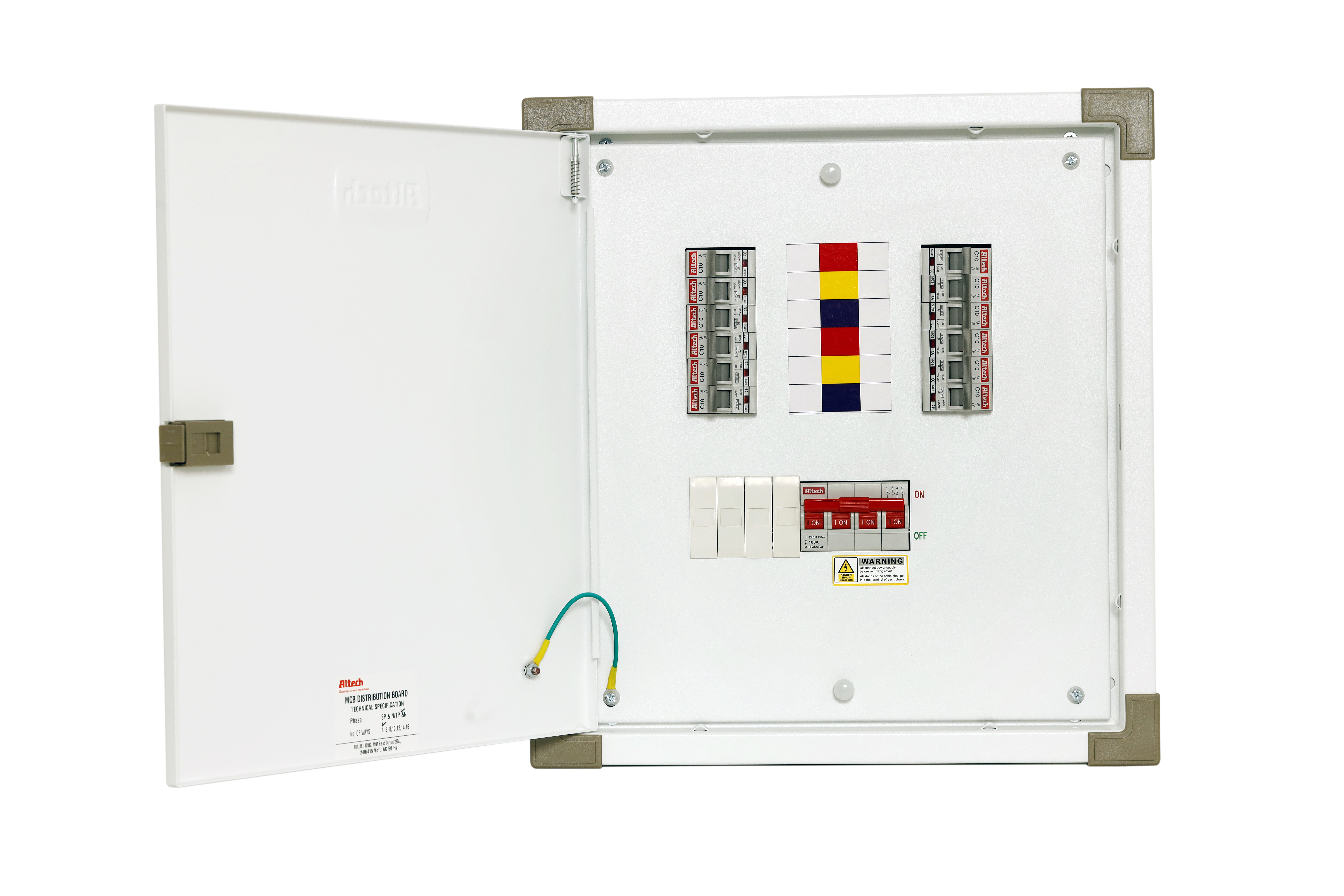

- These are also busbars with protective grounding wires and neutral wires in the interior to facilitate wiring of various low-voltage power distribution system.
- Distribution boxes are widely used in various building , plazas , station , industrial and mining enterprise etc as terminal electrical equipment for power distribution system’s
- These boards undergo a seven-tank phosphating pre-treatment process to ensure anti-rust conditioning, superior finish and lasting strength. Post this process, premium quality powder coating is applied using the state-of-the-art techniques. These boards are also equipped with top and bottom removable gland plates with a number of knockouts. One can thus install them either flush or wall mounted
| No. of Ways | 4, 6, 8 & 12 ways |
| Type of Installation | Surface & Flush mounting |
| Colour | Regal Grey |
| Door Locking Options | Sliding Lock |
| Gland Plates | Top and Bottom Detachable |
| Distribution Technique | Insulated Busbar |
| Bus Bar Rating | 100A |
| Voltage Rating | 240/415V~ AC, 3 Phase/4 Wire |
| Main Incoming Options | Three Phase MCB or RCCB or ISOLATOR |
| Sub Incoming Options | SP or TP or Both MCB |
| Ingress Protection (IP) | IP43 |
| Rated Insulated Voltage (Ui) | 690V~ |
| Frequency | 50Hz |
| Dielectric Strength | 2.5KV |
| Ambient Temperature | -5? C to 40? C |
| Standards | IS 8623; IS 13032,IEC 61439 |
